Product Description

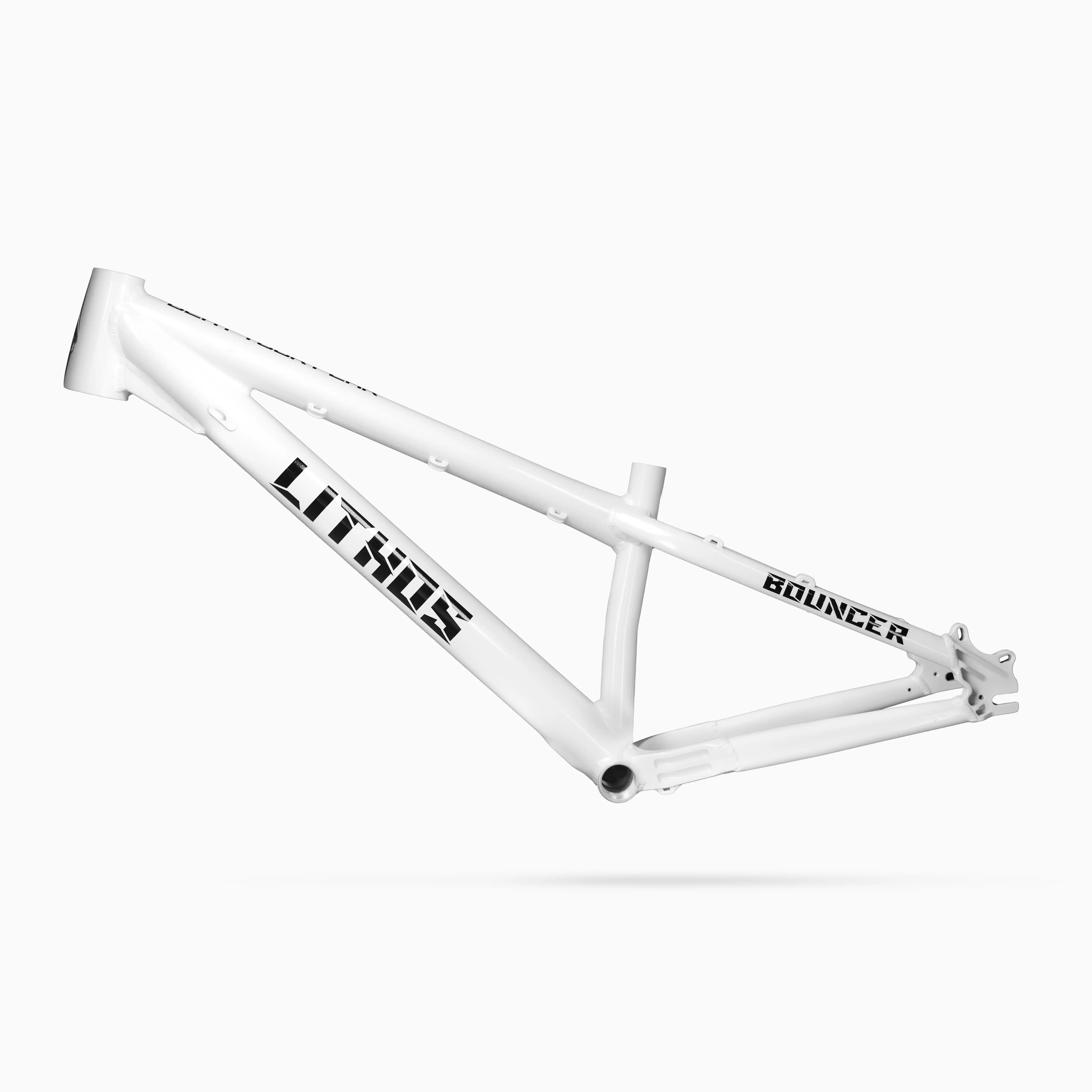

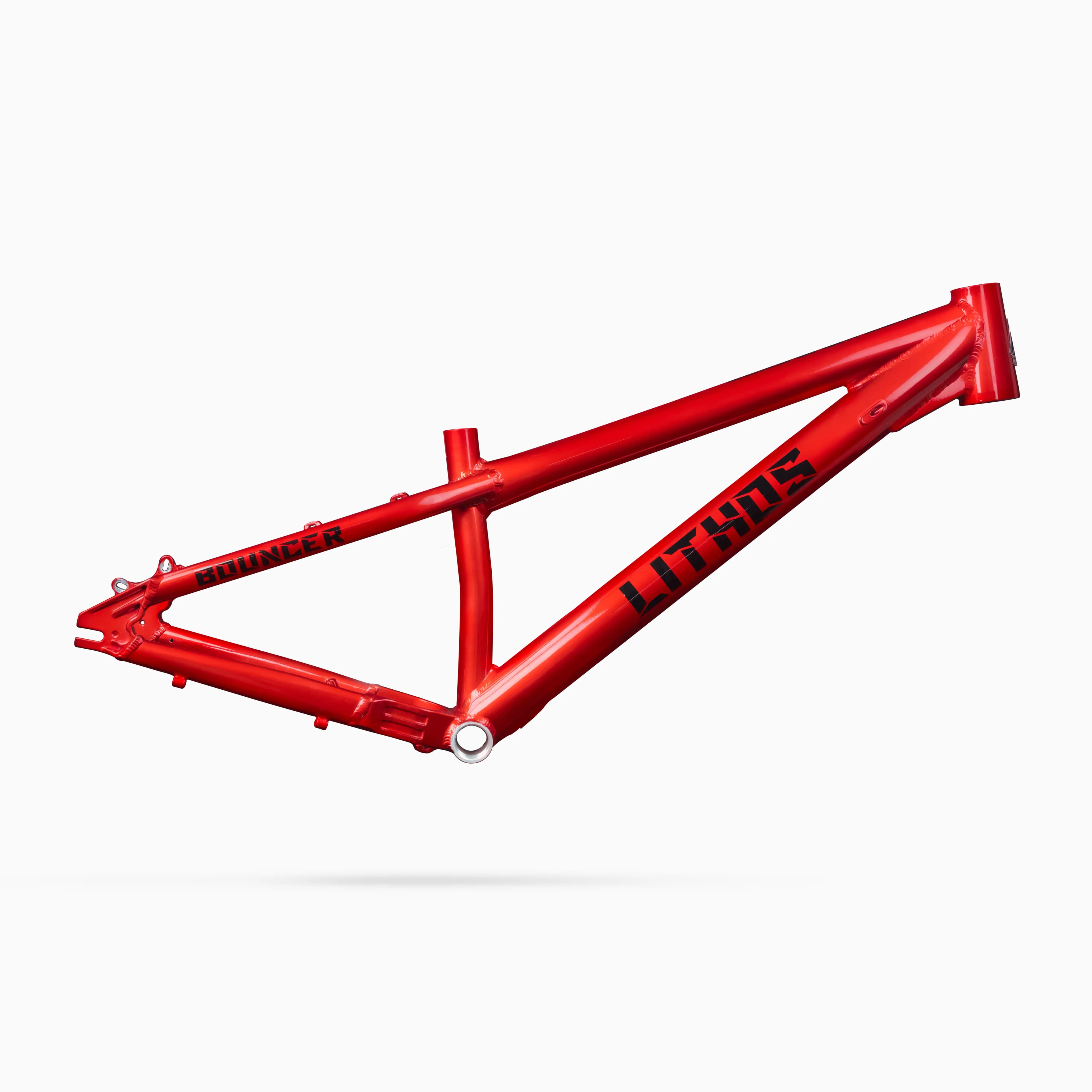

Meet the Bouncer—a dirt jumper frame built for riders who demand precision, strength, and smooth style. Developed with modern geometry and crafted from premium Alloy 6061-T6, this frame strikes the perfect balance between lightweight agility and uncompromising durability, making it your ideal partner for big airs, technical tricks, and aggressive park riding.
The Bouncer's geometry is carefully designed to deliver aerial control, stable landings, and responsive handling. Its short rear end and snappy chainstays enhance flickability, while the 69° head angle ensures sharp steering and confidence during tricks. With reinforced, custom-tuned tubing, this frame can take a beating while keeping weight optimized for peak performance.
Whether you're launching off ramps, spinning through the air, or flowing through pump tracks, the Bouncer is built to move with you—and stay with you.

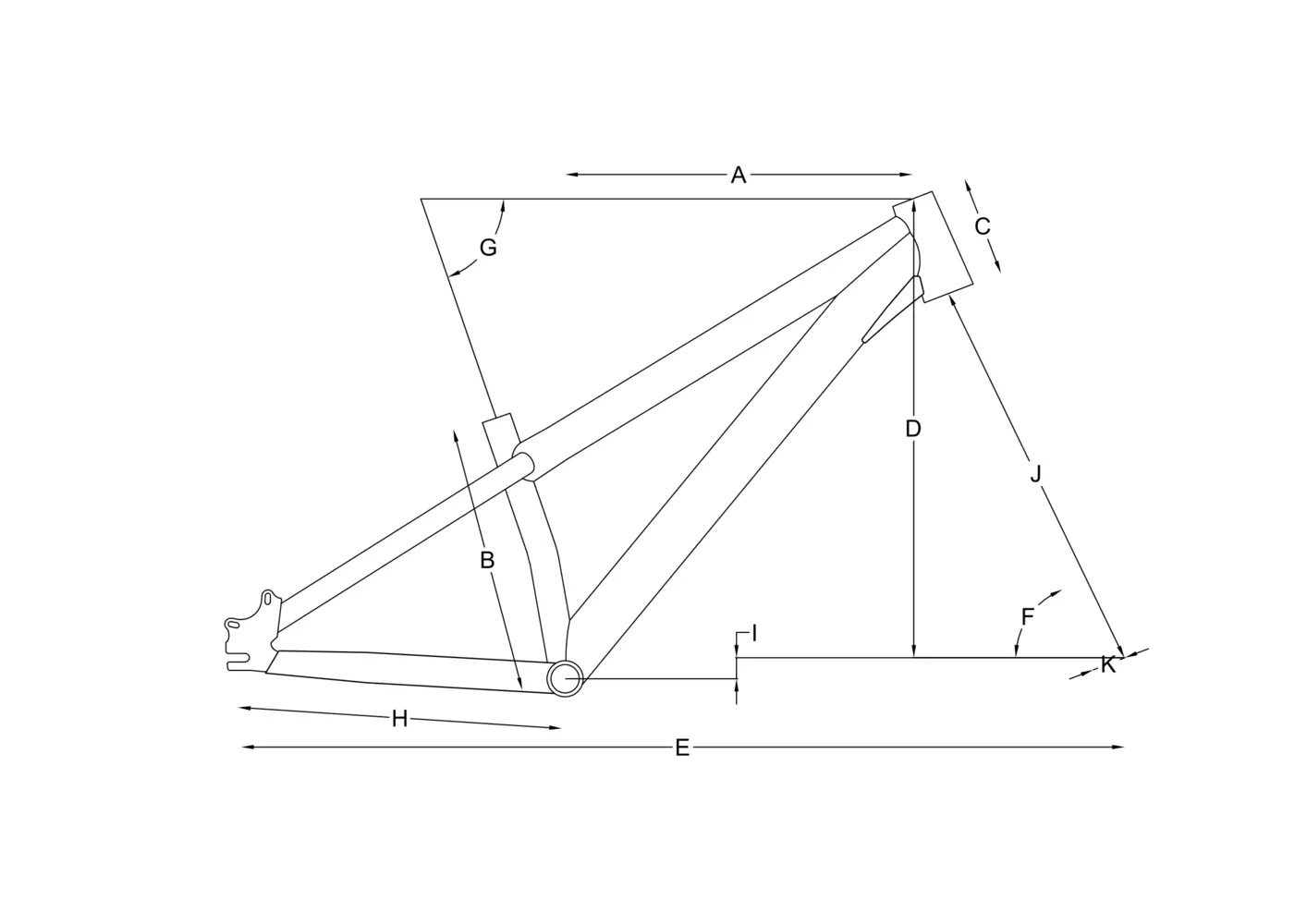

Frame Geometry
Precise measurements for optimal fit and performance
A
~412 mm
Reach
B
320 mm
Seat Tube Length
C
120 mm
Head Tube Length
D
~569.2 mm
Stack
E
1047.8 mm
Wheelbase
F
69°
Head Tube Angle
G
71°
Seat Tube Angle
H
385 mm
Chainstay Length
I
~25 mm
Bottom Bracket Drop
(est.)
J
483 mm
Fork Length
(100mm DJ fork typical A2C)
K
40 mm
Fork Offset (Rake)
(typical DJ fork rake)
Specifications
Key technical details
- Material
- 6061 T-6 Alloy
- Frame Weight
- 2.3kg
- Travel
- 100mm
- Wheel Size
- 26" front & rear
- Warranty
- 3 years
Features
Key features and specifications
- travel front
- 100mm
- wheel size
- 26" front & rear
- frame material
- Custom butted 6061-T6 alloy
- chain tensioners
- Integrated
- headbadge
- Alloy
- rear end
- 135x10 horizontal dropouts
- frame weight
- 2.3kg
- frame warranty
- 3 years
Technical Specs
Complete technical specifications
- frame model
- Lithos Bouncer
- material
- 6061 T-6 Alloy
- travel front
- 100mm
- wheel size
- 26"
- bottle cage mount
- false
- bottom bracket
- BSA 68mm threaded
- chain guide mount
- n/a
- headset top
- 1 1/8" / 44mm inset (ZS44)
- headset bottom
- 1 1/2" / 55mm inset (ZS55)
- seatpost diameter
- 30.9mm
- seat clamp diameter
- 35mm
- rear axle
- 135x10mm
- rear brake mount
- IS
- minimum rotor size
- 140mm
- maximum rotor size
- 180mm
- maximum tyre size
- 26" x 2.5"
- cable routing
- External, Internal
