Parts

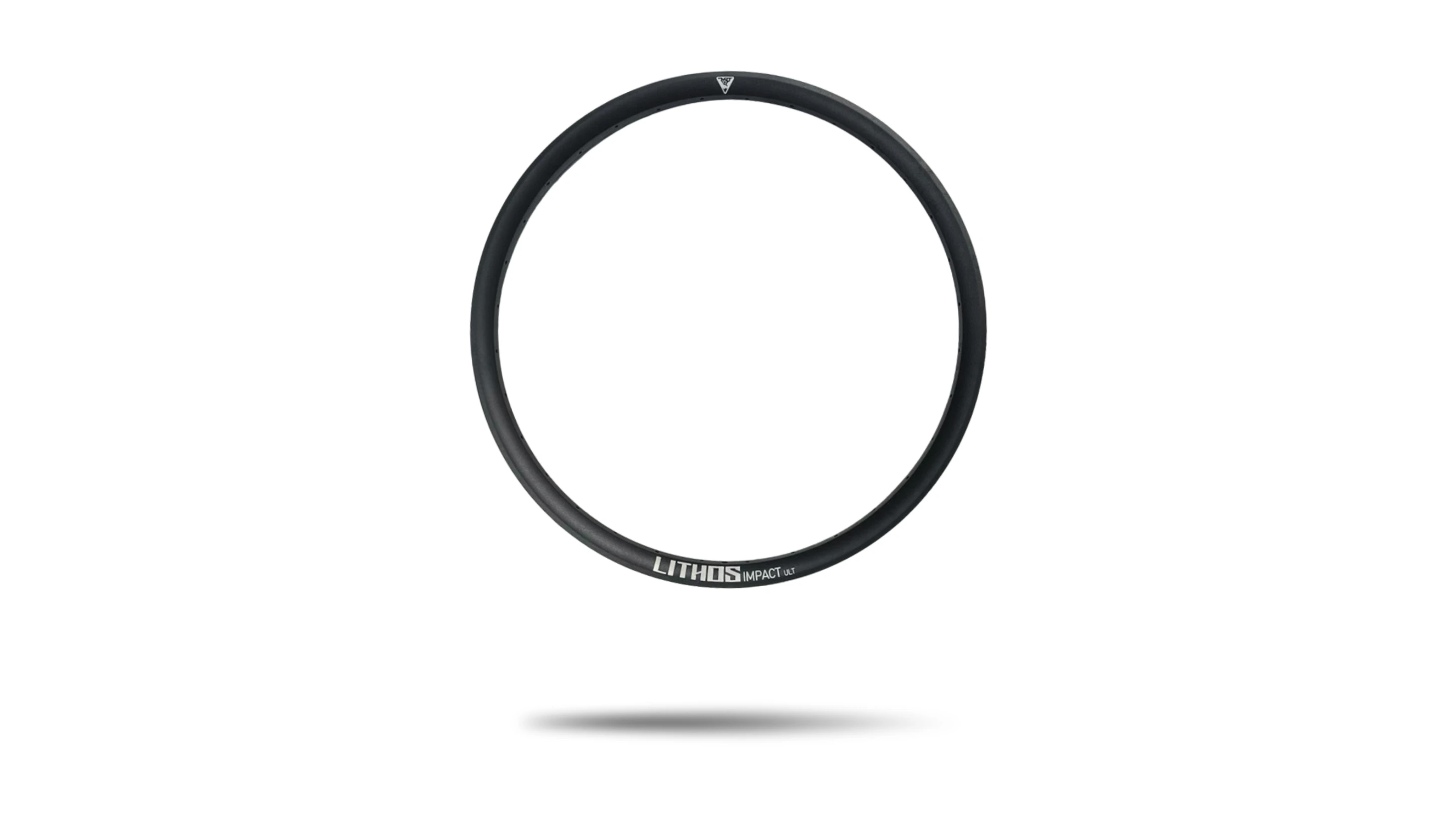

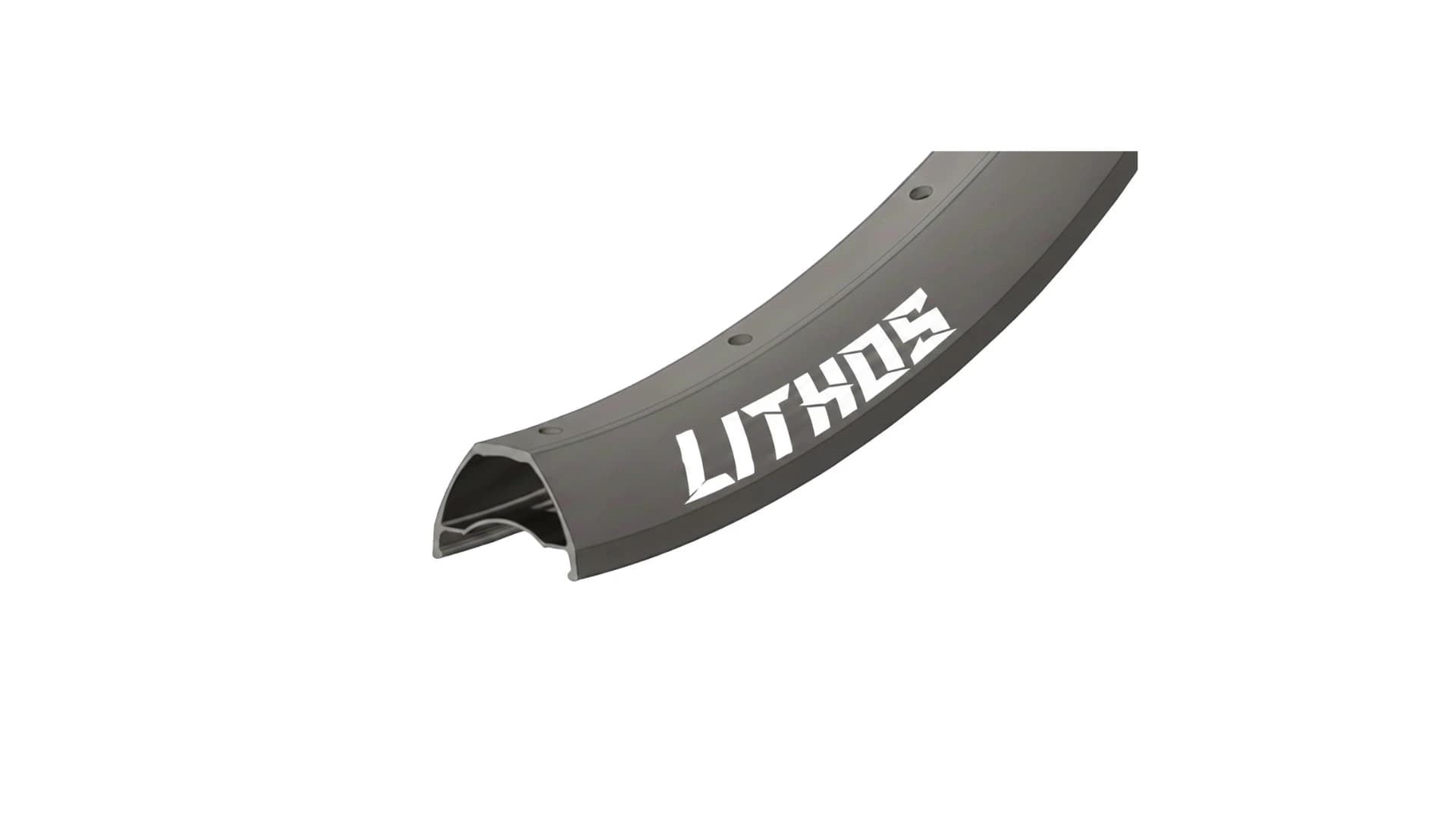

Lithos Impact ULT Rim
Built to Absorb Impact. Engineered to Perform.
£30 (26") · £35 (27.5") · £37 (29")
Store Locations
Find authorized stores near you
Product Description
Built for riders who demand strength, precision, and confidence on aggressive terrain, the Lithos Impact ULT rim is engineered to handle extreme impacts and high-load riding conditions. Designed for All Mountain, Enduro, Downhill, and Dirt Jump disciplines, it delivers durability, stability, and race-ready performance.
Constructed from high-strength Aluminum 6069 and enhanced with advanced 4D smart angle drilling, Impact ULT optimizes spoke alignment and tension distribution. This improves wheel strength, reduces spoke fatigue, and ensures long-term reliability under heavy impacts and hard landings.

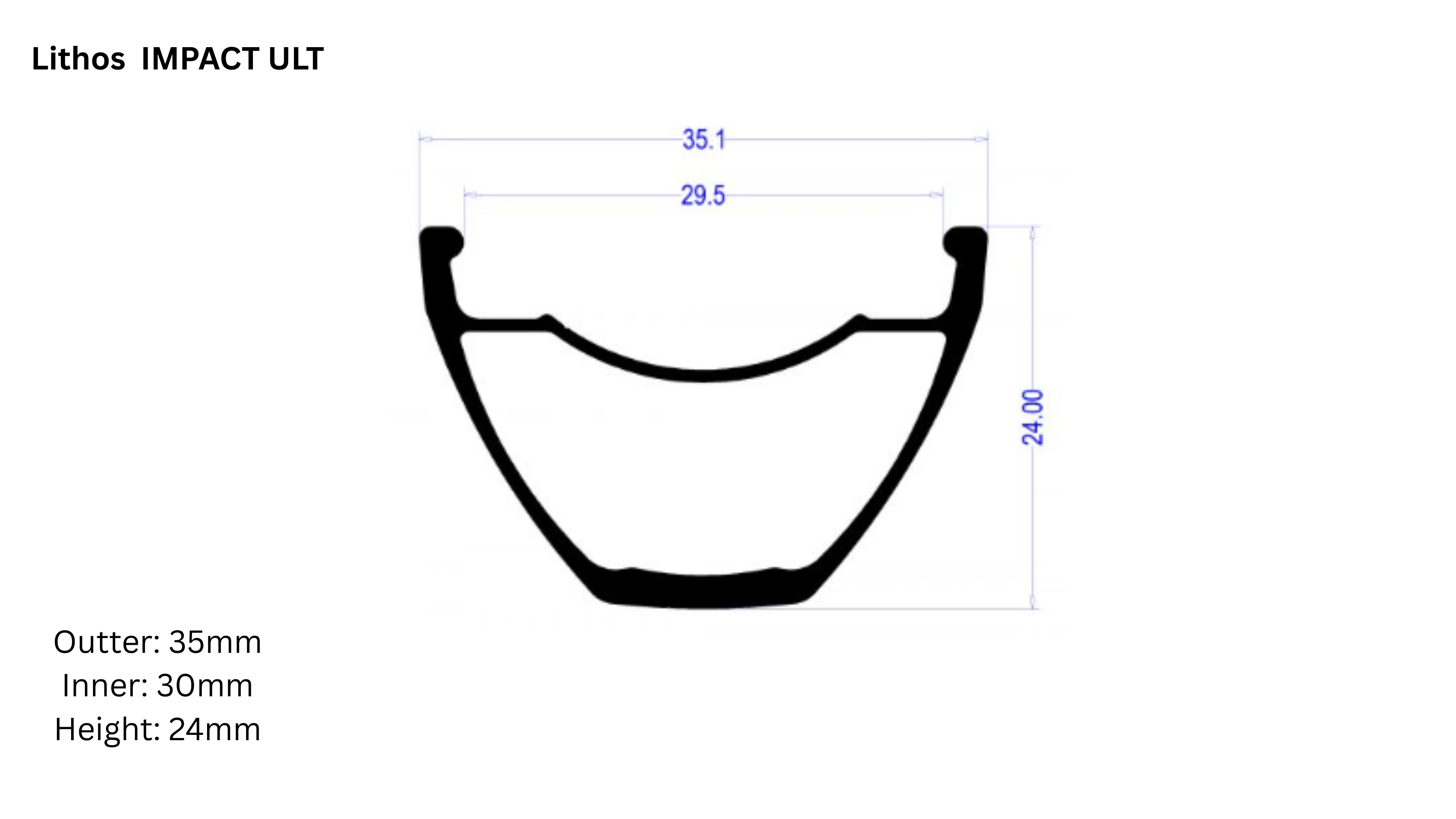

The wide 30mm inner & 35mm outer profile provide improved tire support, traction, and cornering stability, while the tubeless-ready design allows riders to run lower pressures for better grip and control on technical terrain.
Key Features:
- Advanced 4D smart angle spoke drilling
- High-strength gravity-ready construction
- Improved spoke tension balance & durability
- Wide profile for enhanced tire stability
- Tubeless ready for modern trail performance
- Designed for aggressive riding & race conditions
Riding Category: All Mountain · Enduro · Downhill · Dirt Jump · Freeride
Specifications
Key technical details
- Material
- Aluminum Alloy 6069
- Construction
- Sleeved joint
- Finish
- Post-anodized & sandblasted
- Brake Compatibility
- Disc only
- Available Sizes
- 26" / 27.5" / 29"
- Hole Count
- 32H
- Valve Type
- Presta (Ø6.5mm)
- Tubeless Ready
- Yes
- Inner Width
- 30mm
- Outer Width
- 35mm
- Rim Height
- 24mm
- Weight (26")
- 560g
- Weight (27.5")
- 586g
- Weight (29")
- 626g
- Recommended Tire Width
- 2.2" – 3.2"
- Maximum System Weight
- 140 kg
